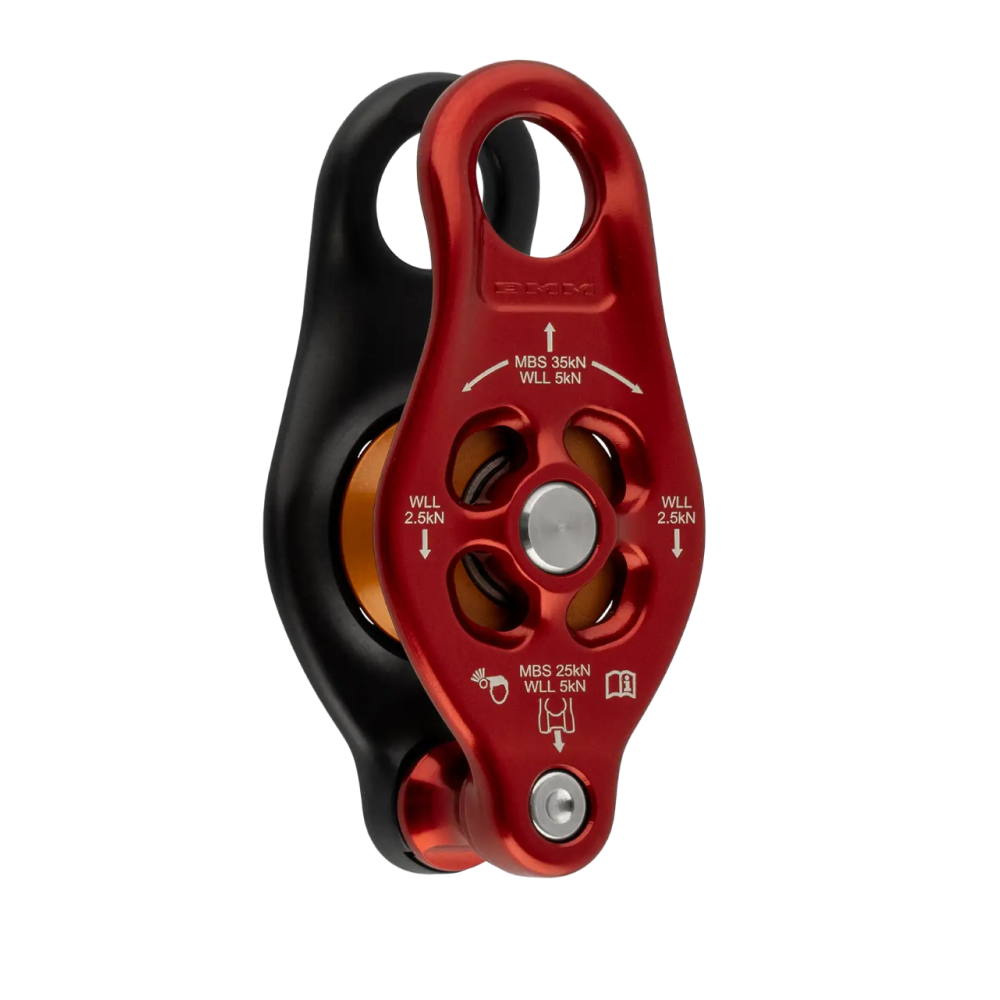

DMM Pinto 2 Pulley PUL131

• Hot-forged Construction: The Pinto 2 is crafted using hot-forging techniques, ensuring superior strength and resilience.
• Rounded Edges: All edges are rounded to reduce rope wear and allow for smoother operation, even with textiles.
• High-efficiency Bearings: Equipped with high-efficiency, low-friction bearings that provide reliable performance under load.
• Attachment Points: The pulley features two attachment points that can accommodate carabiners, webbing, or slings, enhancing its versatility in complex rigging systems.
• Tamper-proof Rivets: The rivets are designed to be tamper-proof, adding an extra layer of safety and reliability.
• Compatibility: The Pinto 2 can be used with a wide range of ropes and connectors, making it a versatile tool for various tasks.

Specifications:

• Product Code: PUL131
• Color: Red
• Material: Hot-forged aluminum
• Minimum Breaking Strength (MBS): 35 kN (26 kN Becket)
• Working Load Limit (WLL): 5 kN (5 kN Becket)
• Dimensions: 95 x 45 x 34 mm
• Weight: 117 grams
• Rope Compatibility: 14 mm max
• Certification: EN 12278:2007

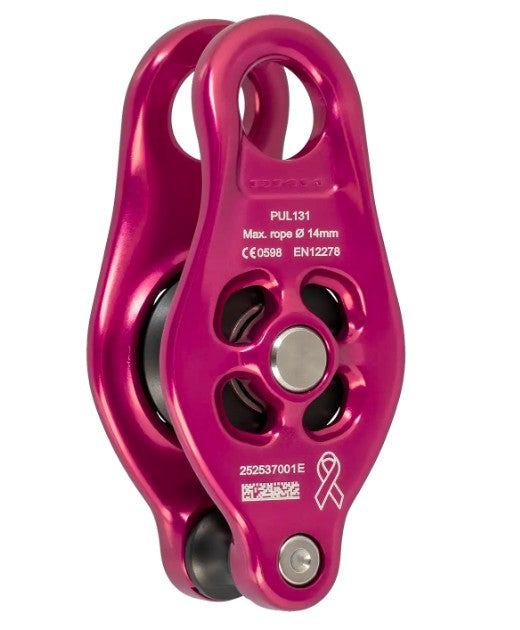

The DMM Pinto is loved the world over, but even classics deserve an upgrade. Which is exactly what DMM have done with the DMM Pinto 2 Pulley Pink Edition!

With smooth lines, textile friendly connections and a full strength becket, Pinto pulleys are incredibly versatile pulleys that work well in most moving rope systems.

Not just a makeover: DMM have kept the same compact and lightweight form of the original Pinto but fitted it with efficient ball bearings meaning it will do everything it always has done better than ever.

The DMM Pinto 2 Pulley features a recessed sheave design to create a completely smooth rope channel meaning your rope or tagline will never snag and always sit on the sheave when feeding in at odd angles.

FEATURES

• Full strength attachments at eye and becket provide a wide range rigging options
• Fixed sideplate design is easy to clip into and load onto tensioned ropes
• Hot forged and robust, with smooth rope and textile friendly fairleads and edges
• Connect directly in with textile components for extra versatility: increase lift height, minimise space required, or enhance tolerance to torsion
• Recessed sheave design helps rope feed smoothly from all angles
• Sealed ball bearings for high efficiency and low maintenance
• Optional spacer available separately for use with rope connection
• Tamperproof construction
• Made in Wales, and certified for peace of mind
