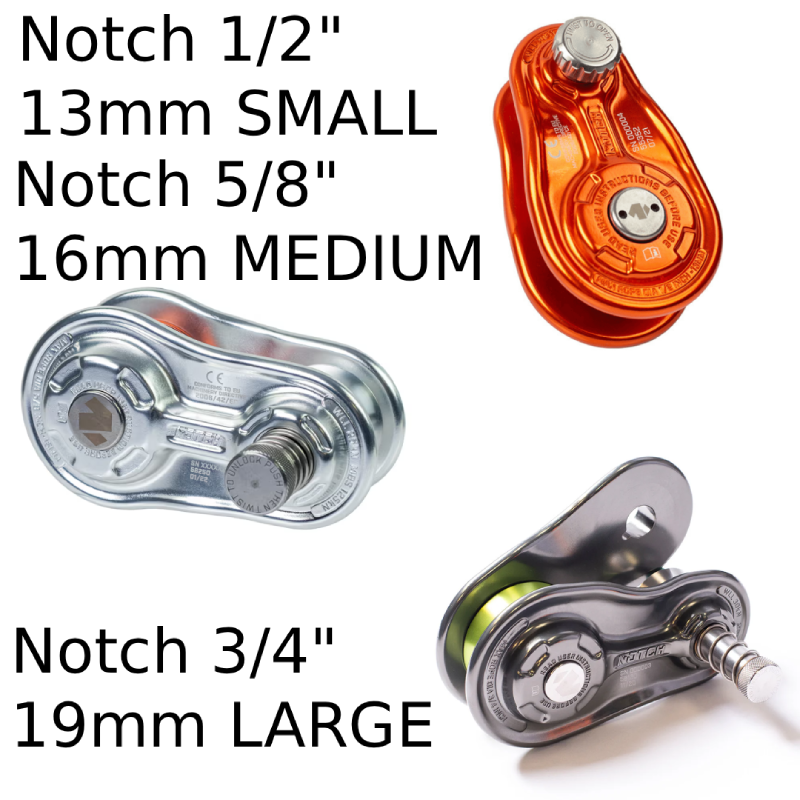

Notch 1/2" 13mm SMALL, 5/8" 16mm MEDIUM, 3/4" 19mm LARGE - Rigging Impact Block Pulley

Arbormaster

$475.95
Unit price per
dd Save $-10.95

Tax included.

55352

Quantity

*For change of mind returns, a 3% refund fee will be deducted from the total refund amount to cover payment gateway, processing, and administrative costs.

1/2" SMALL

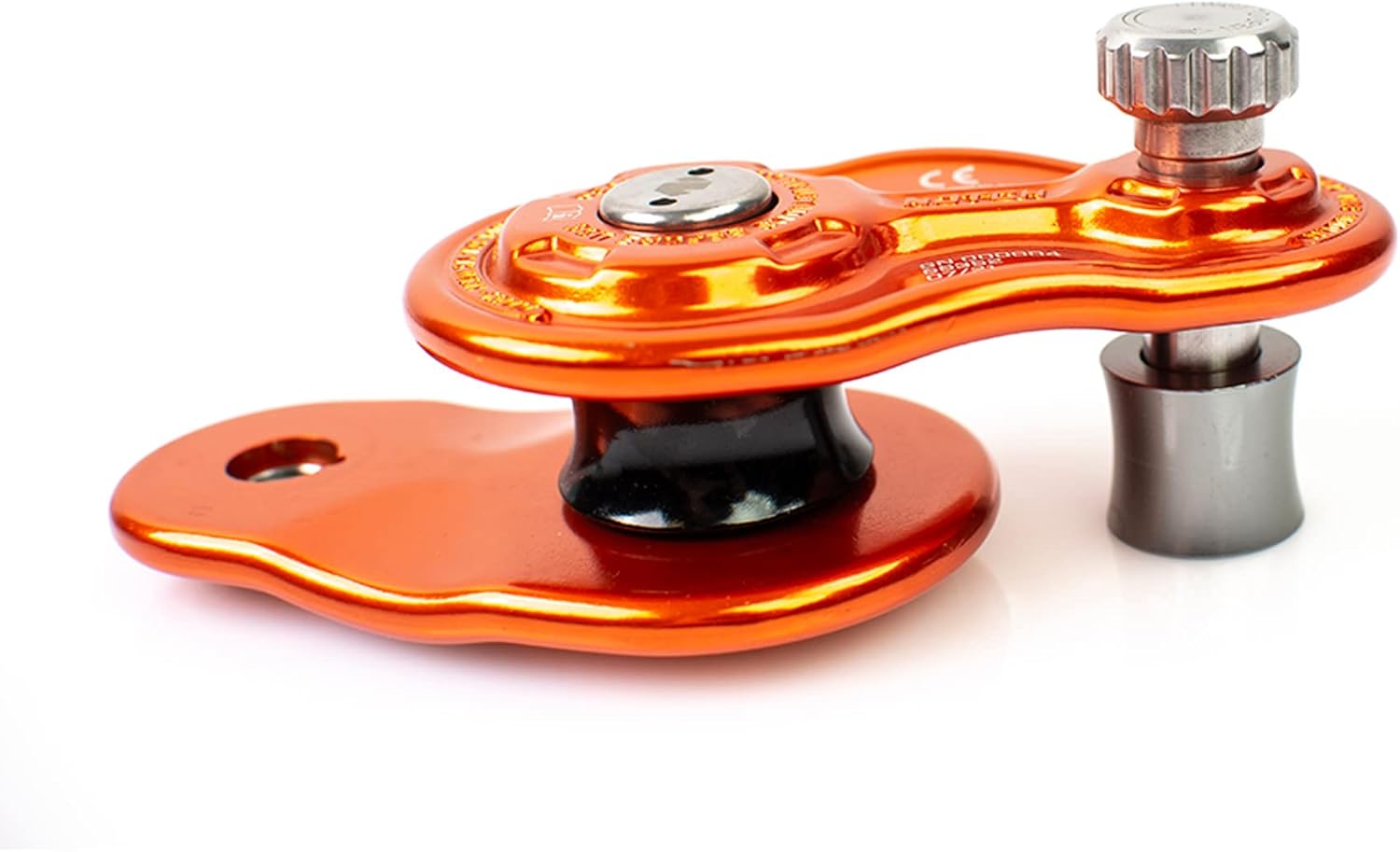

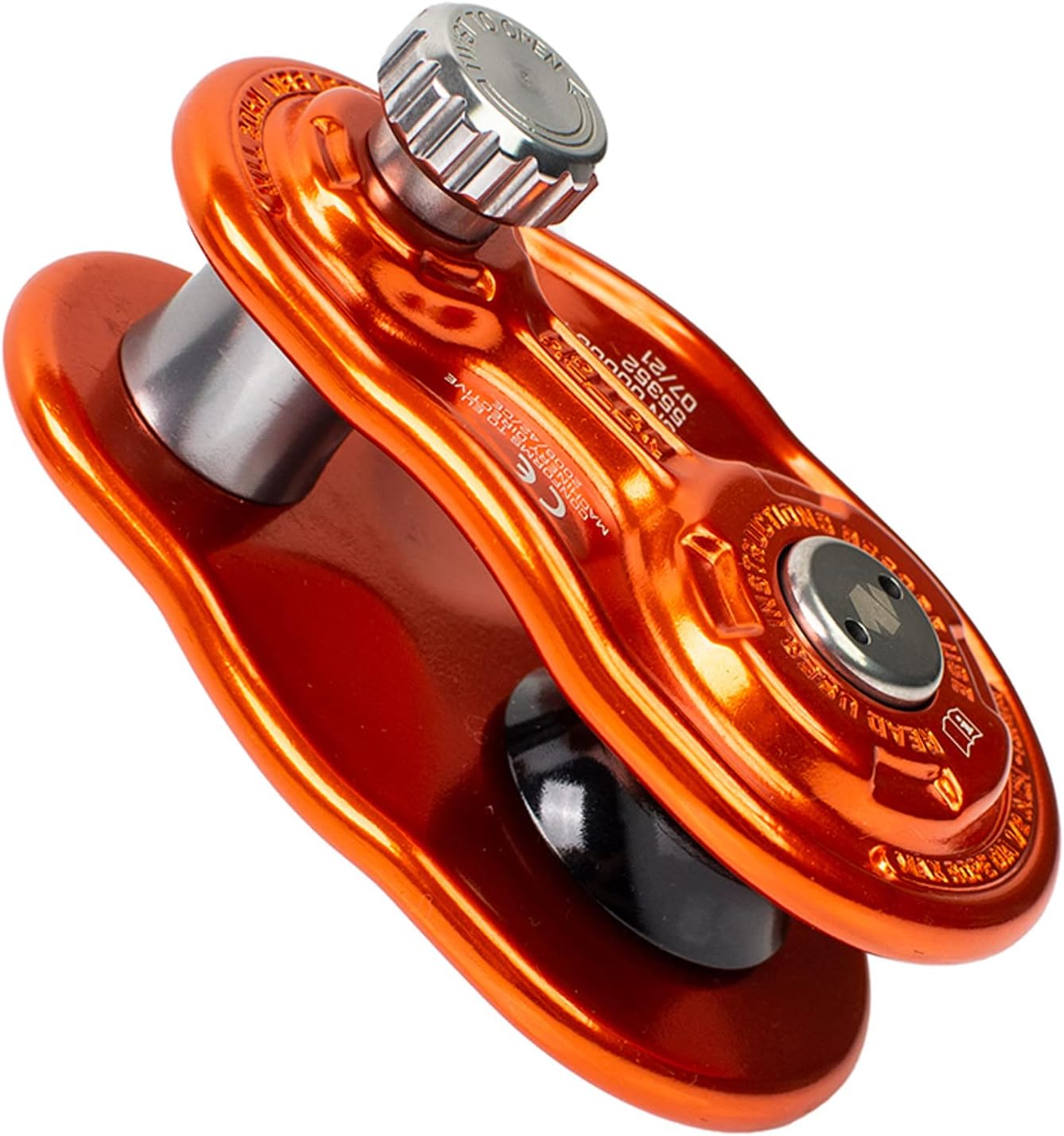

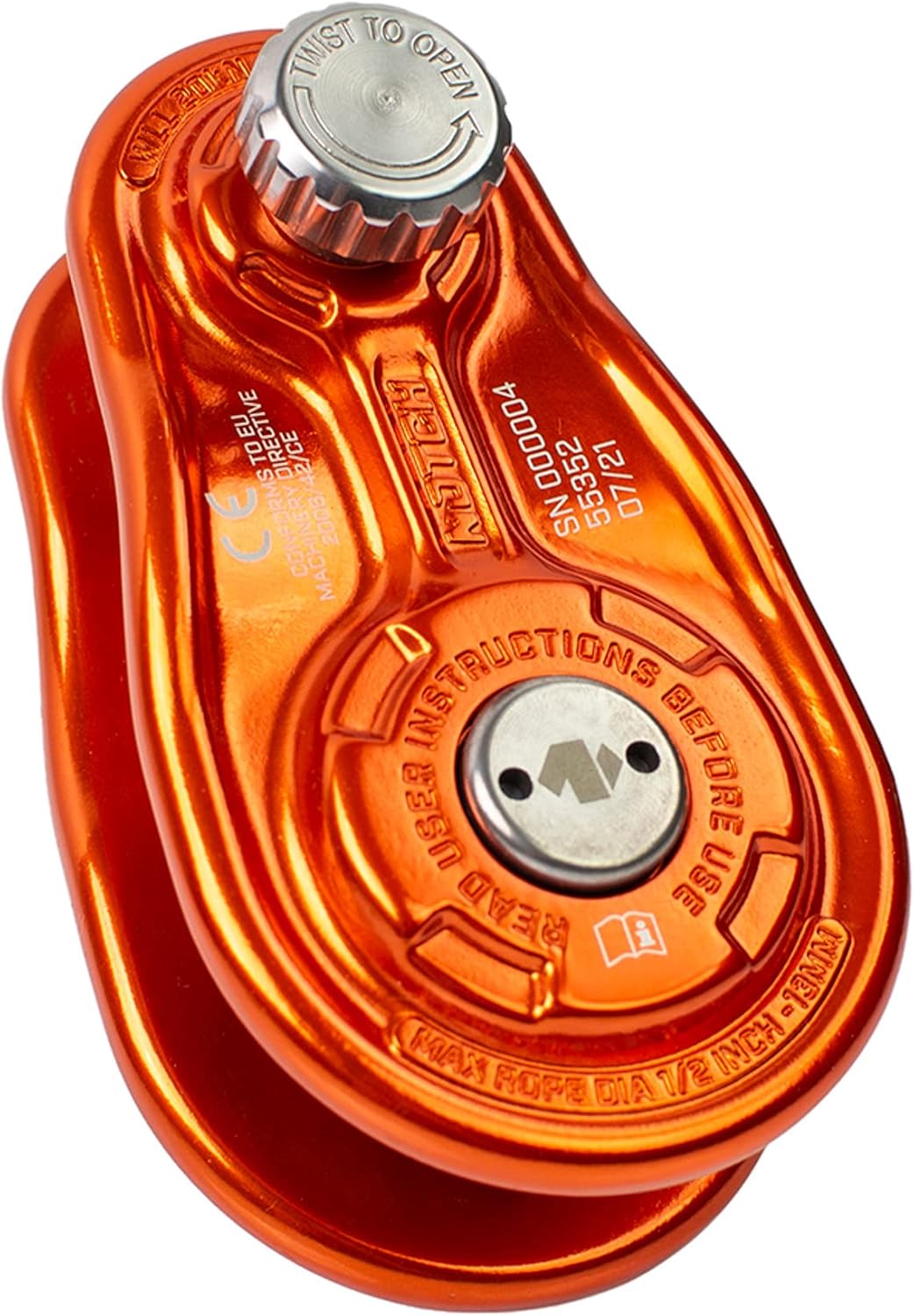

Discover the Notch 1/2″ Rigging Block, a compact and lightweight arborist block designed to handle working lines up to 13mm in diameter.

1/2" Rigging Block: Designed for working lines up to 1/2" (13mm) in diameter.

Features:

20 kN WLL / 100 kN MBS
Crafted with hot forged aluminium side plates featuring rope-friendly rounded cheeks

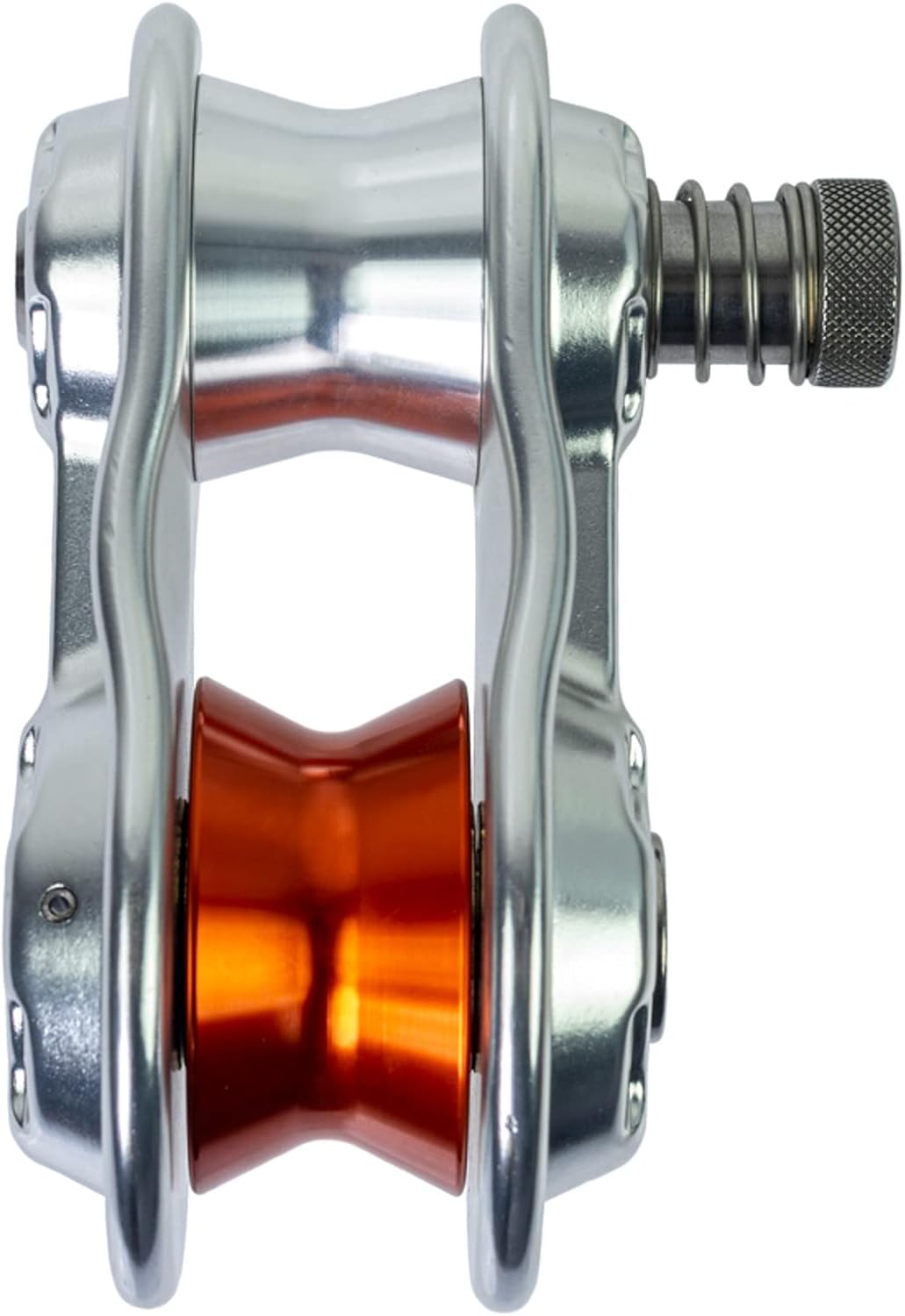

Equipped with precision CNC machined aluminium sheaves, offering wide bend radii

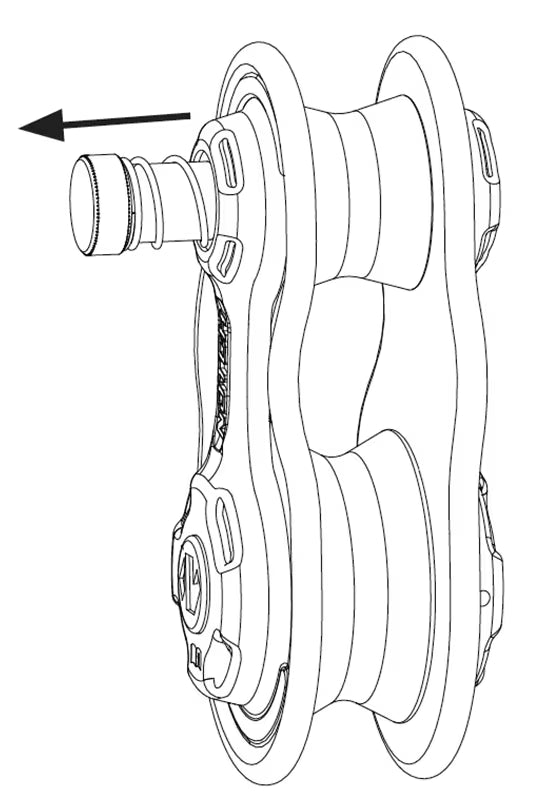

Features a low-profile, secure, and easy-to-open captive screw pin lock
Enhanced anchor sling protection with high wall and full-diameter design
Upper sheave is designed to accept 5/8” anchor slings with a wide, concave shape
Flared side-plates engineered to minimise twisting in complex rigging scenarios

Specifications:

Working Load Limit (WLL): 20 kN
Minimum Breaking Strength (MBS): 100 kN
Max Working Line Diameter: 13mm
Max Sling Diameter: 16mm
Upper Sheave Diameter: 19mm
Lower Sheave Diameter: 38mm
Height: 118mm
Width: 68mm
Weight: 450g
Sideplate Material: Aluminium
Sheave Material: Aluminium
Axle Material: Stainless Steel

5/8" MEDIUM

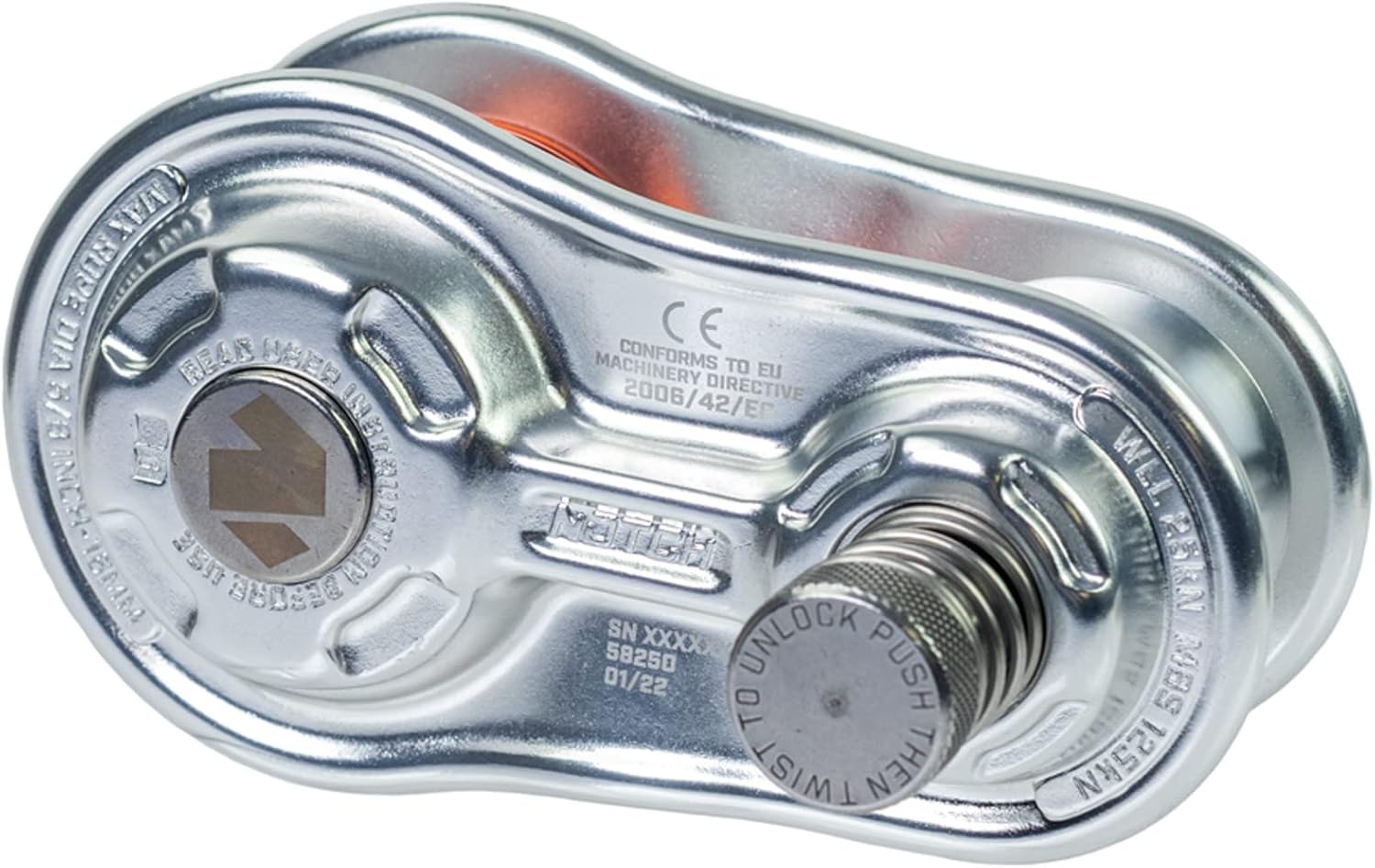

The Notch 5/8″ Rigging Block is a medium-sized, lightweight arborist block designed to accommodate working lines up to 5/8” (16mm) in diameter.

5/8" Rigging Block: Designed for working lines up to 5/8" (16mm) in diameter.

Features:

25 kN WLL / 125 kN MBS
Crafted with hot forged aluminium side plates featuring rope-friendly rounded cheeks
Equipped with precision CNC machined aluminium sheaves, offering wide bend radii
Features a low-profile, secure, and easy-to-open captive screw pin lock
Enhanced anchor sling protection with high wall and full-diameter design
Upper sheave designed to accept 1” anchor slings with a wide, concave shape
Flared sideplates engineered to reduce twisting in complex rigging scenarios

Specifications:

Working Load Limit: (WLL) 25 kN (5,620 lbs.)
MBS: 125kN (28,100 lbs.)
Max Working Line Diameter: 16mm
Max Sling Diameter: 25mm
Upper Sheave Diameter: 50mm
Lower Sheave Diameter: 61mm
Height: 158mm
Width: 87mm
Weight: 1.4 kg
Sideplate Materials: Aluminium
Sheave Material: Aluminium
Axle Material: Stainless Steel

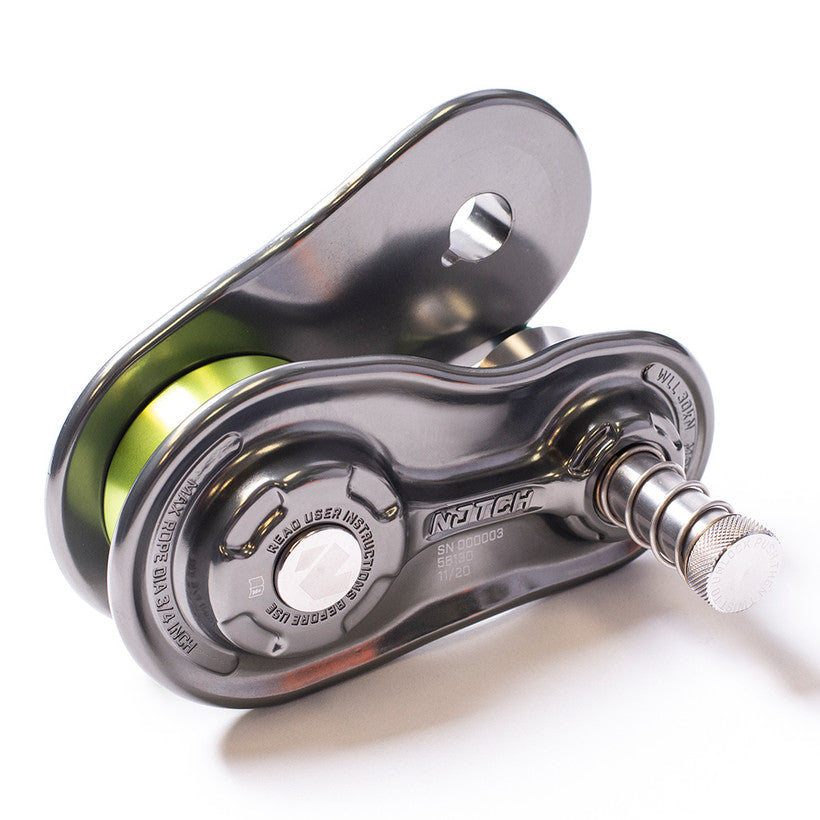

3/4" LARGE

3/4" Rigging Block: Suitable for working lines up to 3/4 inch (19mm) in diameter.

Features & Benefits:

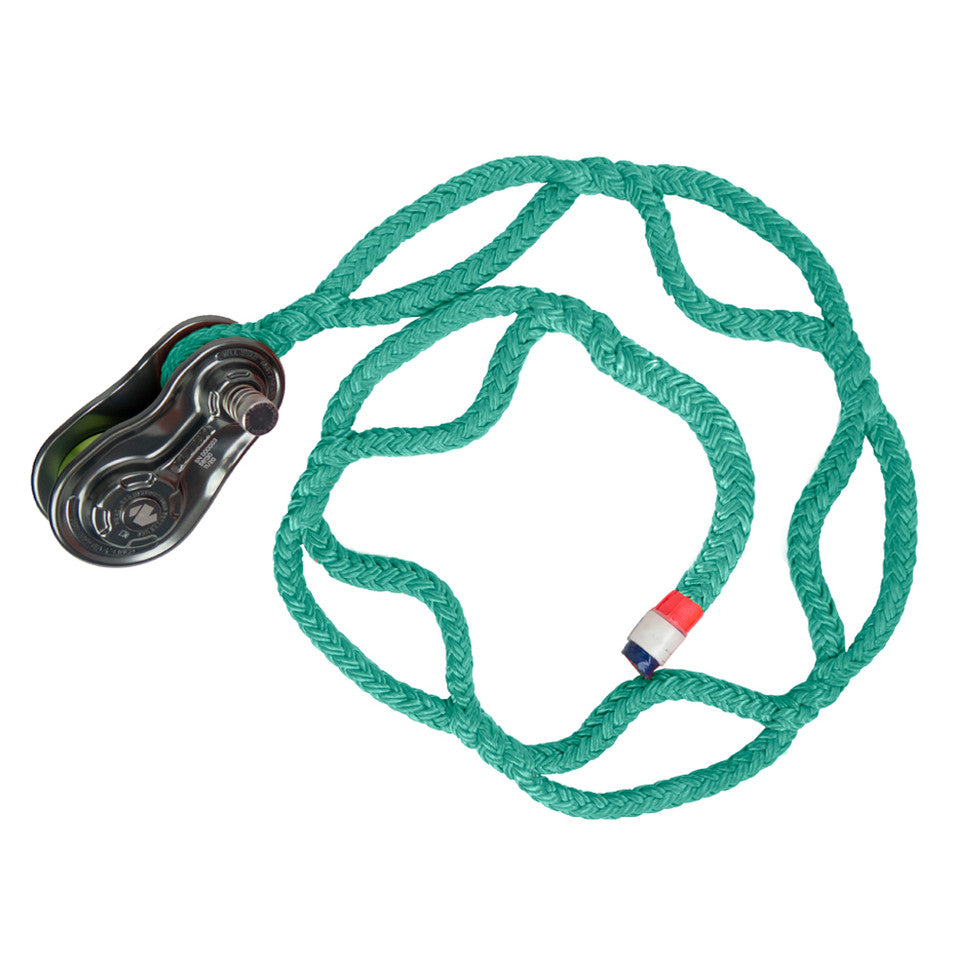

Innovative design offers no hassle, knotless anchoring
Simply insert block into terminal eye of the sling and pass through the desired individual pocket
Features 6 spliced 8" pockets
21,000 lbs MBS sling in chocked configuration
Only designated for use in choked configuration
Use on running lines up to 3/4"
Notch rigging block 30kN WLL

Note : Colours may vary

...
