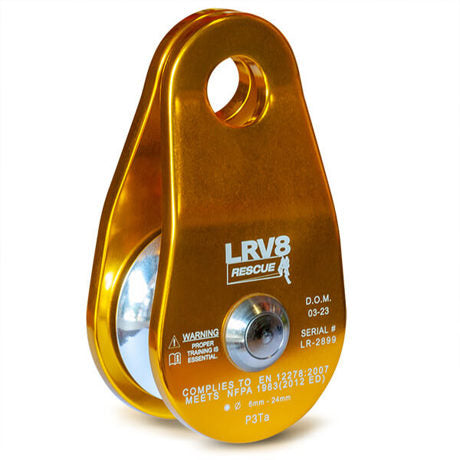

LRV8 P3TA Pulley with Swivel Cheeks 60mm Wide - Thick

LRV8 Pulley (Wide / Thick Sheave).

The Original SRTE P3Ta Pulley Just Better.

Our big, high load, workhorse swing cheek pulley has just gotten bigger, not in size but in strength. Going from a 80kN pulley to a whopping 120kN.  The NEW 120kN Pulley has a MBS of 120kN and a Safe Working Load of 24kN. Compact and light enough to live in a kit bag but built tough to last. It’s a tried and tested design that’s earned its reputation for durability over the past 30 years.

Swing cheek construction allows opening the pulley to facilitate loading rope without threading from the end.

Attachment point loads connectors correctly.

We use stainless steel for the axle because it can’t be inspected so we need to be sure it’s corrosion proof. It’s riveted to be tamper proof and to ensure it can’t come apart in use.

The self lubricating sintered bronze bushing is again corrosion proof as well as stronger and more robust than the ball bearings our competitors use.

Aluminium pulley designed with swivel cheeks that extend beyond the surface of the rope to protect the rope from abrasion if pressed against an object. Swivel cheeks also allow you to put the rope in the pulley at any point.

Only available in Gold colour.

Outer Diameter of Sheave: 60mm

Maximum Rope Size: 25mm

Maximum Load: 8,000kg

Safe Working Load: 800kg

Please Note: this pulley is labelled to take 13mm rope in line with Australian & international testing standards. Suits up to 25mm rope.
